Special power tap for the RC Eye One Xtreme

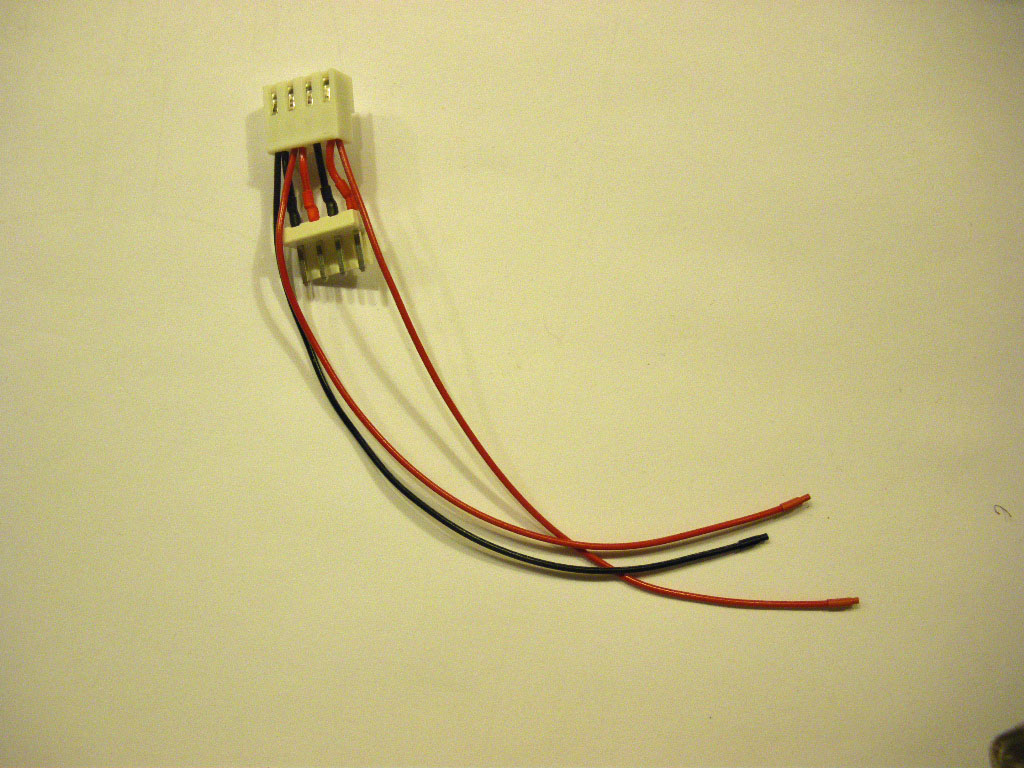

This is a simple male/female battery connector, with leads out so you can attach them to your video TX and/or camera.

There are three wires (26 gauge, 6" long) coming out of this short jumper. One ground and two red ones. The far red wire (opposite end to the ground) will supply 2S power to your peripheral. The red wire right next to the ground will provide 1S power to your peripheral. Select the one you like, tie into that one and the ground, and you're good to go. If you want to clean up your installation and/or save weight, then take the red wire you didn't use, cut it off very close to the connector, and insulate it so it can't contact anything accidentally.

NOTE - using the 1S taps off this adapter along with one of my 2S battery converters may not work!

NOTE2 - This will NOT fit a standard RC Eye One or RC Eye One S battery pack.

NOTE3 - You will not see a voltage on the red 2S line unless you've plugged in a battery pack AND plugged this adapter into the Xtreme.
